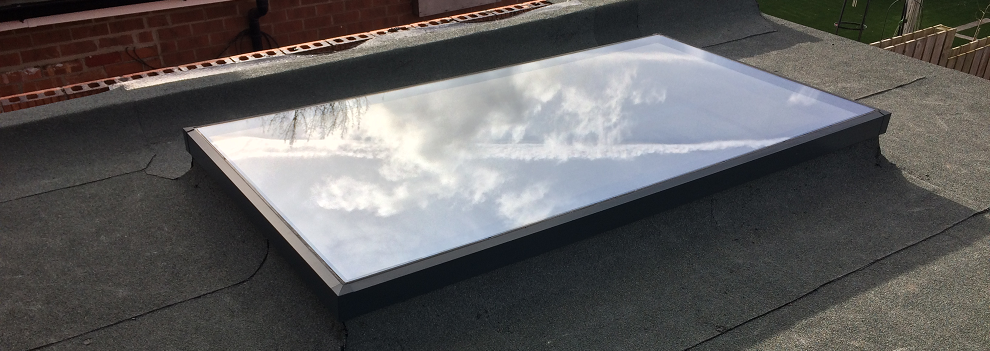

  • Vision Flat Roof Light

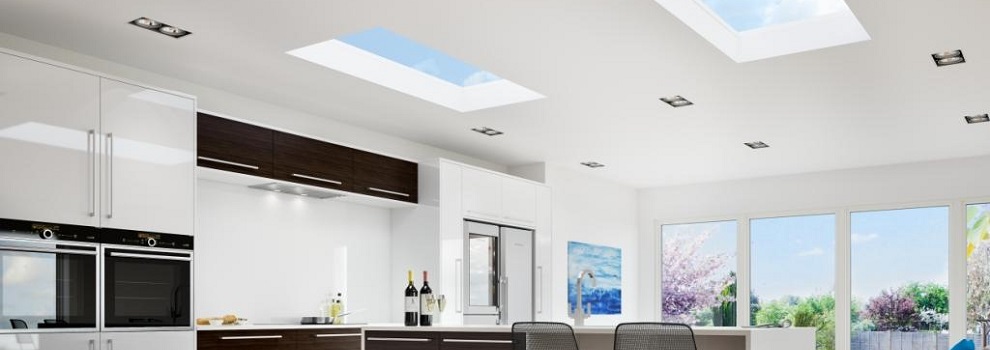

  • Reveal Vision Flat Roof Lights Interior View

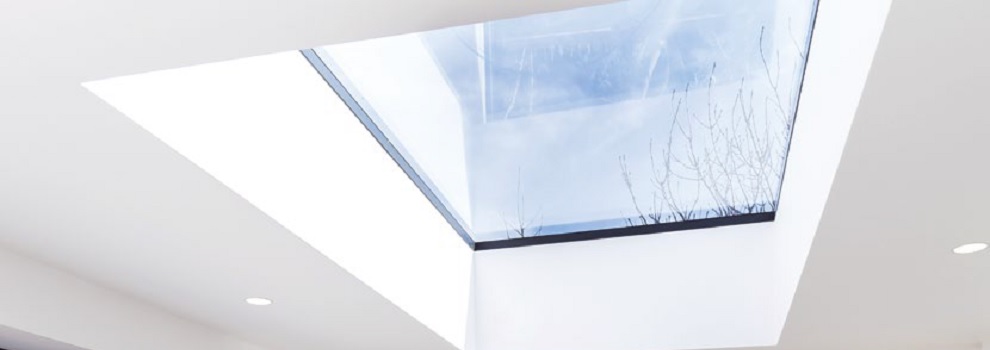

  • Vision Flat Roof Light Viewed From Inside

Vision Flat Roof Lights

The Reveal Vision Flat Roof Light is one of the best performing Flat Roof Lights on the market.  The glass sits flush to the edge of the roof light achieving narrow sightlines and a perfect neat finish.

  • Ultimate Performance – overall U-value of 1.3 W/m2K
  • Neutral self-cleaning glass as standard
  • High Performance glass – 1.0 W/m2K
  • Maximum Light – sitting flush to the internal plaster line
  • The roof light appears frameless from the interior of your home
  • Minimal Sightlines – only 32.5mm visible internally
  • Slim aluminium internal cover for ultimate open view

Standard sizes available at Special prices!

1000mm wide by 1000mm long

 Vision Flat Roof Light 1000mm by 1000mm

1000mm wide by 1500mm long

 Vision Flat Roof Light 1000mm by 1500mm

1000mm wide by 2000mm long

 Vision Flat Roof Light 1000mm by 2000mm

Bespoke sizes up to 1200mm wide by 2500mm long and 1400mm wide by 2000mm long

Standard colours available on Quicker lead times!

  • Grey RAL 7016 matt
  • Black RAL 9005 matt
  • White RAL 9910 satin
  • Grey on White
  • Black on White

Non-standard RAL colours available upon request

Whatever your requirements our Vision Flat Roof Light can be up to three metres square in size for the ultimate unobstructed overhead view of the sky (hopefully a blue sky).

Please note that we can only install Vision Flat Roof Lights into non-tiled roofs (asphalt, fibre and other material types are generally suitable).

Specification

Our Vision Flat Roof Lights are ideally suited to residential use with the following specification:-

  • Narrow internal sightlines for a perfect neat finish
  • Frame Depth of 86.0mm
  • Frame Height of 85.5mm
  • Internal visible dimension of 32.5mm
  • Five degree pitch minimum for water runoff
  • Polyester powder organic coated aluminium weather bar and internal trim
  • Structural PVCu internal core for excellent thermal performance
  • 28mm double glazed neutral self-cleaning toughened safety glass – U Value 1.0 W/m2K
  • Overall Thermal Performance of 1.3 W/m2K (frame and glass)
  • Standard colours: Grey RAL 7016 matt, Black RAL 9005 matt and White RAL 9910 satin
  • Dual colour Grey on White and Black on White available
  • Special RAL colours available
  • Standard sizes: 1000x1000mm, 1000x1500mm and 1000x2000mm (internal measurement)
  • Maximum sizes: Up to 1200x2500mm and 1400x2000mm (internal measurement)
  • Maximum size of 3.0m2

Whatever your aluminium Flat Roof Light requirements, unless you are after a bigger size then the Reveal Vision Flat Roof Light cannot be beaten on quality and value for money.
