Bi-Folding Door Configurations-Open Out

5 Pane Bi-folding Door – Open Out

5 Pane Bi-folding Doors can be configured in six different ways.  You can even have the doors configured with the master door in the centre.

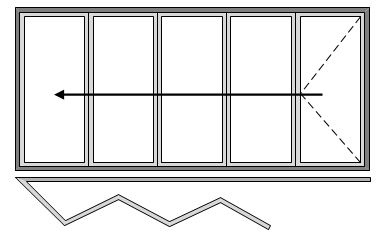

5 Pane Bi-folding Doors Open Out All Slide Right To Left

Viewed from Outside

All panes slide from right to left and right hand side door opens first as an independent master door

Opening Out

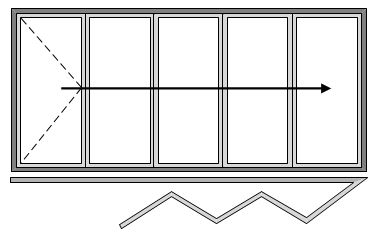

 5 Pane Bi-folding Door Open Out All Slide Left to Right

Viewed from Outside

All panes slide from left to right and left hand side door opens first as an independent master door

Opening Out

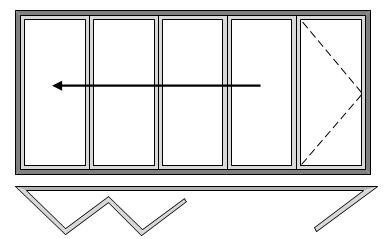

 5 Pane Bi-folding Door Open Out Four Slide Right to Left and a Master Door

Viewed from Outside

Four panes slide from right to left and right hand side door opens first as an independent master door

Opening Out

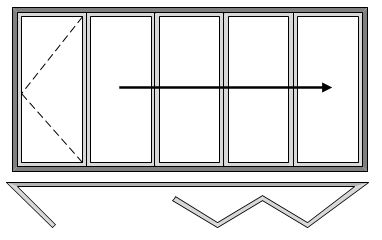

 5 Pane Bi-folding Door Open Out Four Panes Slide Left to Right and a Master Door

Viewed from Outside

Left hand side door opens as an independent master door and four panes slide from left to right

Opening Out

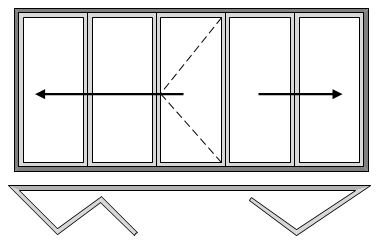

 5 Pane Bi-folding Doors Open Out Three Slide Right to Left and Two Slide Left to Right

Viewed from Outside

Central door opens as an independent master door with first three panes sliding right to left and two panes sliding from left to right

Opening Out

 5 Pane Bi-folding Doors Open Out Two Slide Right to Left and Three Slide Left to Right with a Master Door

Viewed from Outside

Central door opens as an independent master door with last three panes sliding left to right and two panes sliding from right to left

Opening Out

Our most popular configuration requested by our clients for home extensions to add an extra dimension.  With a maximum width of over 6 metres it is possible to open up the outside world to the inside.
