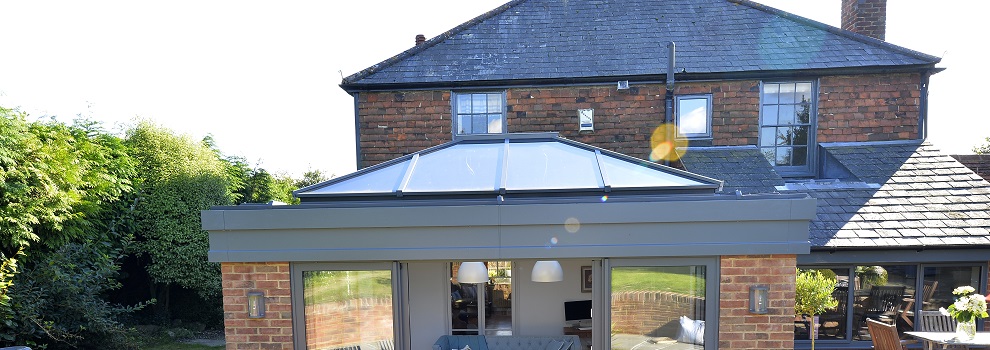

  • Aspect Roof Lantern Front View

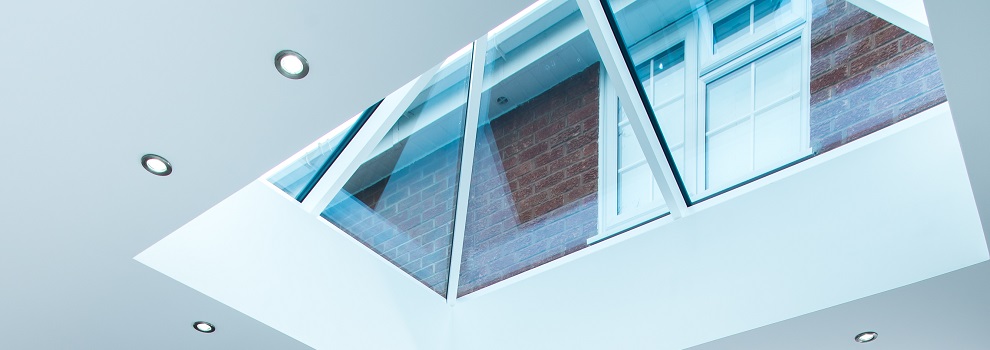

  • Aspect Roof Lantern Internal View

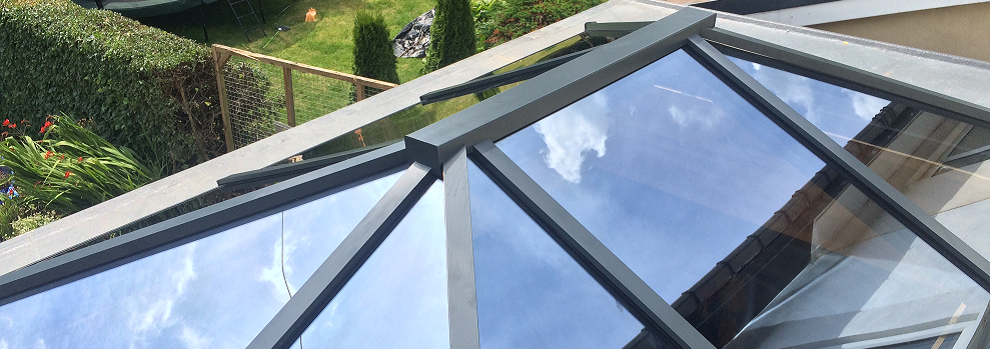

  • Aspect Roof Lantern External View

Aspect Roof Lanterns

The Reveal Aspect Roof Lantern offers exceptionally slim sight lines, thermal efficiency and high resilience to wind and snow loads using 40mm wide aluminium profiles.  A wide range of colours and sizes are available with our most competitive being listed below.

  • Ultimate Performance – overall U-value of 1.5 W/m2K
  • Neutral self-cleaning glass as standard
  • High Performance Glass – 1.1 W/m2K
  • Maximum light – 40mm rafters which are 70% slimmer than competing products
  • Stronger – 70, 83 and 100mm rafters for increased spans
  • Up to 5000mm wide and 10000mm long

Standard sizes available at Special prices!

 1000mm wide by 2000mm long Aspect Roof Lantern
 1500mm wide by 2500mm long
 2000mm wide by 3000mm long
  2000mm wide by 4000mm long

Bespoke sizes up to 5000mm wide by 10000mm long.

Standard colours available on Quicker lead times!

  • Anthracite Grey Matt (RAL 7016)
  • Jet Black Matt (RAL 9005)
  • Bright White Satin (RAL 9910)
  • Grey on White
  • Black on White

Non-standard RAL colours available upon request.

Whatever your requirements, the Aspect Roof Lantern achieves everything you could need.  Thinner, stronger, lighter – contact Reveal Doors & Windows today for a quotation.

Specification

Our Aspect Roof Lanterns are ideally suited to residential or commercial use with the following specification:-

  • Full aluminium system, thermally enhanced with polyamide thermal break
  • Attractive, slim-line profiles offering sightlines of only 40mm
  • Slim 52mm flat aluminium rafter cap
  • Frame Depth of 70-100mm
  • Minimum upstand width of 67mm
  • Polyester powder organic coated aluminium
  • Glass 24mm double glazing or 44mm for triple glazing
  • Overall Thermal Performance of 1.5 W/m2K
  • Resistance to Wind Load up to 1.32 kN/m2
  • Resistance to Snow Load up to 1.32 kN/m2
  • Maximum Width of 5,000mm (subject to site conditions)
  • Maximum Length of 10,000mm (subject to site conditions)
  • 17 degree minimum up to 35 degree maximum pitch
  • Standard polyester powder coated colours of Anthracite Grey Matt (RAL 7016), Jet Black Matt (RAL 9005), and Bright White Satin (RAL 9910) with Grey on White and Black on White dual colour options available.
  • Full RAL colour spectrum available.

Whatever your aluminium Roof Lantern requirements, the Aspect Roof Lantern cannot be beaten on quality and value for money.
