Composite Timber Four Pane

  • Composite Four Pane Sliding Patio Doors

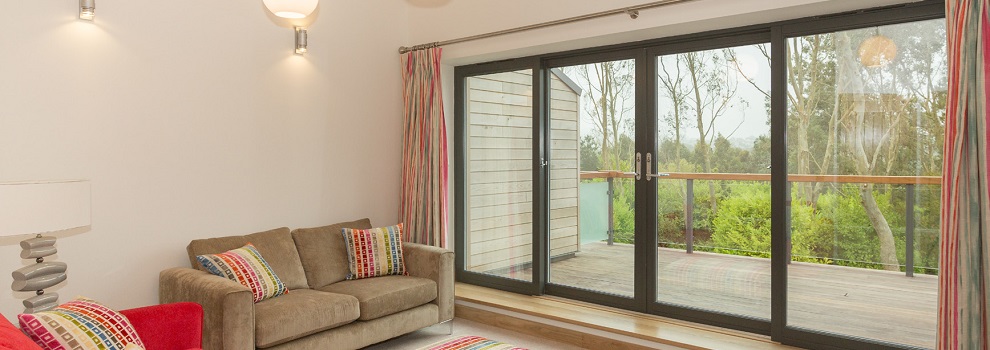

Composite Timber Four Pane Sliding Doors

Attractive and modern, Composite Timber Four Pane Sliding Doors make an eye catching and bold statement for any home.

Focusing on stunning glass areas which are highlighted by bold composite timber section create a streamline and clean aesthetic look.

Our Composite Timber Four Pane Sliding Doors deliver excellent thermal efficiency, which are tested to the highest standards to guarantee reliability.

Composite Timber Four Pane Sliding Doors have enabled the creation of large sliding sashes and glazed areas which flood any space with natural light.



Our Composite Timber Four Pane Sliding Doors are ideally suited to residential or commercial use with the following specification: –

  • Left or right lead door
  • Two centre sliding doors over fixed lights
  • Attractive offering typical sightlines of only 123mm
  • Frame width of 172mm
  • Contemporary chamfered sash
  • Stylish ironmongery with secure multipoint locking
  • Marine Grade Quality Organic Polyester powder coated aluminium to 60 microns
  • High-quality PEFC sourced European timber
  • Glazing from 24mm for double or up to 49mm for triple glazed units
  • Exceeds Building Regulations Document L 2010
  • Overall Thermal Performance of typically 1.2 W/m2K
  • Air Permeability to EN 12207: 2000:- Class 4 600Pa
  • Water tightness to EN 12208: 2000:- Class 9A 600Pa
  • Resistance to Wind Load to EN 12211: 2000: – Class C3 1200Pa

Minimum/maximum dimensions

  • Maximum Height 2388mm
  • Minimum Height 1650mm
  • Maximum Width 7988mm
  • Minimum Width 2788mm

Maximum weight

  • Maximum Pane Weight 80Kg

For larger widths or heights, a sidelight and fanlight is available specifically designed to match the Composite Four Pane Sliding Door outer frame.
